Mounting to the shaft – online calculation

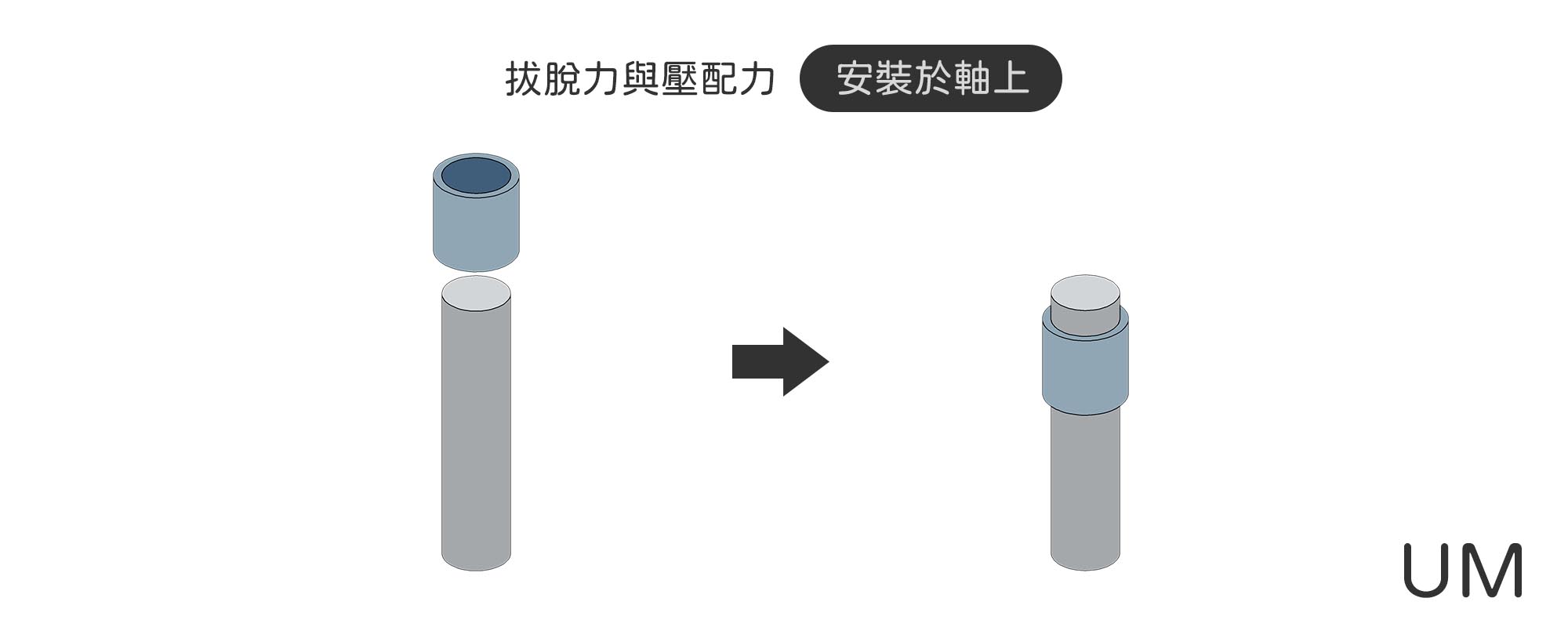

The bushing is mounted on a shaft and the force of assembly or disattachment is calculated. the inner diameter of the bearing is tight fitting and interference fit; The outer diameter is loose and clearance; The shaft rotates together with the bearing

Description

1. If the metal inner diameter is solid, please fill in 0.
2. The inner diameter ID of the bushing needs to be greater than the OD of the metal outer diameter to have the compression force & pull-out force.
3. If you don’t find a material that you can’t find, please use a similar material instead, or fill out the online contact form and we’ll get back to you as soon as possible.
4. Values are for reference only

axis
Shaft Material:	POM PTFE Polyetheretherketone, PEEK Nylon 46 Nylon 6 Nylon 66 PEI PI PPS PP PC PS PVC HDPE Aluminum 6061-0 Cast iron No steel Carbon steel
Inner diameter, unit: mm
Outer diameter, unit: mm
Bushings
Liner Material:	POM PTFE Polyetheretherketone, PEEK Nylon 46 Nylon 6 Nylon 66 PEI PI PPS PP PC PS PVC HDPE Aluminum 6061-0 Cast iron No steel Carbon steel
Inner diameter, unit: mm
Outer diameter, unit: mm
Height, unit: mm
coefficient of friction
